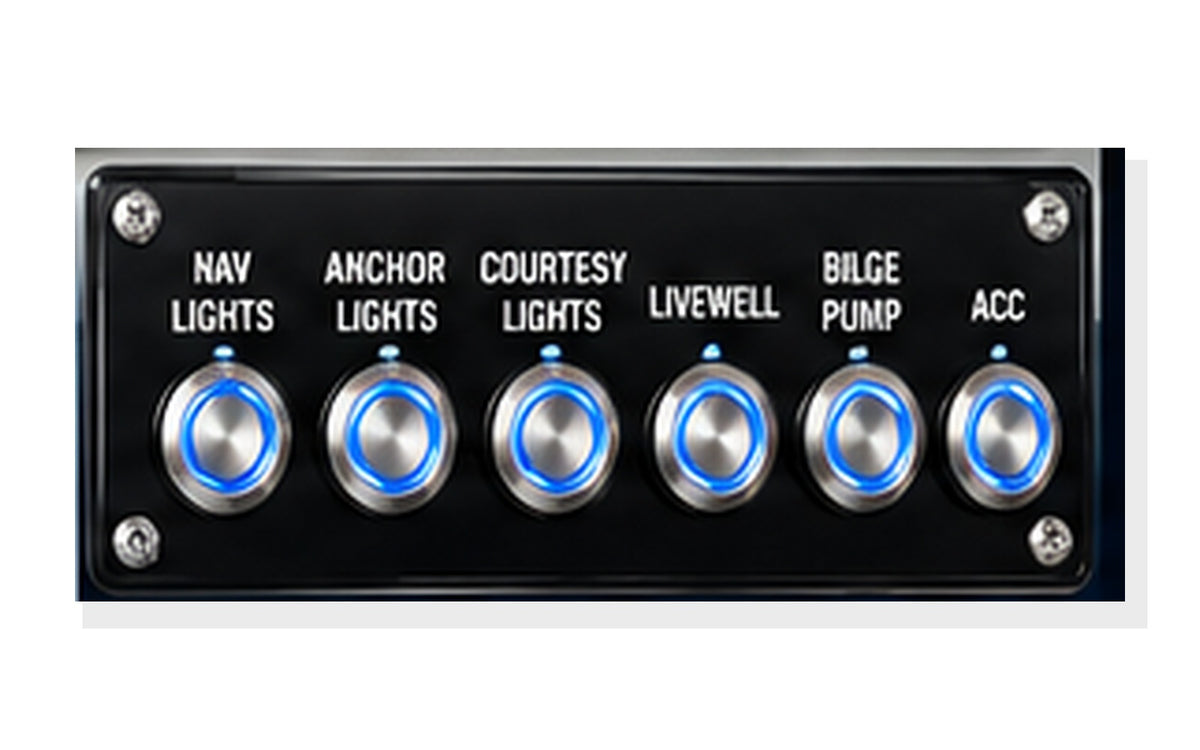

6-Button 19mm Stainless Steel LED Marine Push Button Panel

Custom marine acrylic switch panel built with 6 stainless steel 19mm latching LED push buttons for a clean, modern helm upgrade.

Standard example labels: NAV LIGHTS, ANCHOR LIGHTS, COURTESY LIGHTS, LIVEWELL, BILGE PUMP, ACC. These are examples only — you may request your own circuit names before production.

Choose your finish:
Engraved Only — base price
Engraved + White Fill — +$50
RGB Backlit Engraving — +$148 total upgrade, including the $48 RGB lighting system.

Included: custom-cut gloss black acrylic panel, 6 installed 19mm stainless steel LED push buttons, custom circuit-name layout and your selected engraving finish.

Push button specifications: 19mm mounting hole, latching ON/OFF operation, 1NO contact, IP65 protection and 10A/12V DC rating.

Popular circuit names include NAV LIGHTS, ANCHOR LIGHTS, BILGE PUMP, LIVEWELL, HORN, COURTESY LIGHTS, WASHDOWN, DECK LIGHTS, FRESH WATER, WIPERS and ACC circuits.

Wiring harness, breakers, USB/12V outlets and additional custom cutouts are not included in the base price unless added to the final order.

Because each panel is custom fabricated, final dimensions, circuit names and layout must be approved before production.

How to start your custom panel

This listing is a starting configuration for the button or switch count shown. It is not a one-size-fits-all price for every boat; the listed price covers the standard panel and options described above.

1. Choose the button or switch count closest to your project.
2. Message us with a clear photo of the mounting area, opening measurements (width × height), your boat make/model, and the labels or functions you want.
3. We confirm fitment, layout, finish, and pricing for any upgrades before fabrication begins.

Custom wiring, circuit protection, outlets, electronics, specialty cutouts, and installation are quoted separately when needed.

Need a complete helm or electronics layout? Start a Marine Project to share your boat details, photos, and goals before choosing a consultation or design deposit.
